Product Details
Place of Origin: Shenyang
Brand Name: QHHK
Certification: ISO/WAS
Payment & Shipping Terms
Minimum Order Quantity: 25 tons
Price: US $4-25/Square Meter
Packaging Details: Standard export seaworthy package,suit for sea and air transport.or as required
Delivery Time: Shipped in 15 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50000 Square Meters per Month
Thickness: |
50/75/100/150/200/250mm |
Material: |
Galvanzied Steel Sheet |
Length: |
Customer's Requirement |
Model Number: |
GCC SGCH SPCC DX51D+Z |
Application: |
Roofing Sheet |
Certificate: |
ISO9001:2000 |
Certification: |
ISO9001:2015,ISO14001:2015,ISO45001:2018 |
Thickness: |
50/75/100/150/200/250mm |
Material: |
Galvanzied Steel Sheet |
Length: |
Customer's Requirement |
Model Number: |
GCC SGCH SPCC DX51D+Z |
Application: |
Roofing Sheet |
Certificate: |
ISO9001:2000 |
Certification: |
ISO9001:2015,ISO14001:2015,ISO45001:2018 |

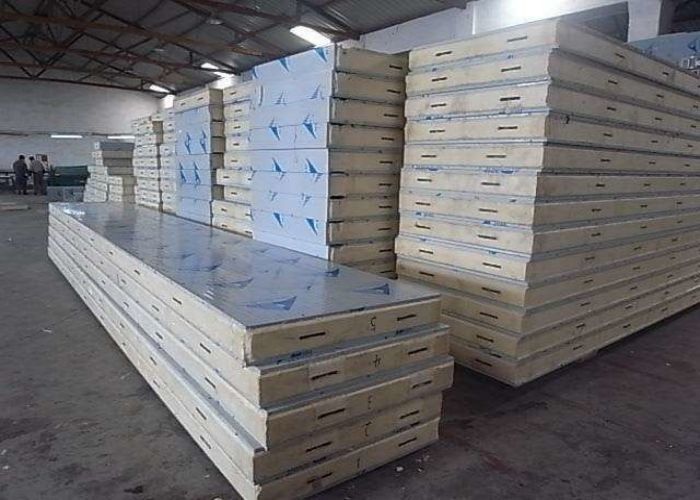

PU PVC Polyurethane Sandwich Panel Quake Proof Metal Building Wall Panels ISO9001
PU Sandwich panel (Polyurethane sandwiched panel )is composed of 2 layers of weather-proof colored steel sheets and jetted the hard forms of polyurethane between 2 layers which feature fireproof materials. It is suitable for the various roofs and walls referring to the large-size factory buildings, storages, exhibition halls, gymnasiums, freezing stores, purifications workshops, etc.
Product Characters:
1. perfect warm-keeping
Product Specification:
| Product | Polyruethane(PU) sandwich panel |
| 1. Density | 40-42kg/m³ |
| 2. Thermal conductivity | <0.020W/m.k |
| 3. Thickness range | 40mm-200mm or depend on customers demands |
| 4. Upper and lower plate (shell) | Color steel sheet/Stainless steel sheet/ aluminum sheet |
| 5. Fire retardant | B2 grade |
| 6. Steel Thickness | 0.2-0.8mm |
| 7. Effective width |
800mm/900mm/950mm/1000mm--for wall
1000mm--for roof
|
| 8. Structure |
three layers: (1)upper layer is steel sheet, (2)the inner layer is PU sandwich, (3)the bottom layer is also steel sheet |
| 9. Parts |
Steel line for easy connect one by one Film covering in order to protect the steel of panels |
| 10. Lifetime | 20-30 years |
| 11. Character | Light in weight, heat insulation, fireproof and waterproof,environmental |
| 12. Usage |
various roofs and walls referring to the large size factory buildings,storages,
exhibition halls, gymnasiums ,etc |
| 13. Packing | Packed by shipping container or according to your demands |
1) keep fruits, vegetables and eggs fresh.
2) Bitzer compressors.
3) PU foam sandwich panels.
4) Swing or Sliding door
