China Factory Turnkey Customize Light Gauge Steel Warehouse For Sale

Product Details

Place of Origin: Shenyang

Brand Name: QHHK

Certification: ISO/WSF

Model Number: Steel Structures

Payment & Shipping Terms

Minimum Order Quantity: 500sqm

Price: usd $49-79square meter

Packaging Details: By clients requirement in 40'OT/ 40'HQ/ 40'GP/ 20'GP Containers.

Delivery Time: Shipped in 30 days after payment

Payment Terms: L/C, T/T, Western Union

Supply Ability: 5000 Square Meters per Month

Get Best Price
Highlight:

Turnkey Customize Light Gauge Steel Warehouse

,

Sale Light Gauge Steel Warehouse

,

china factory Light Gauge Steel Warehouse

Design Standard:
AISC/EN/JIS/GB
Lighting System:
Optional
Fire Protection System:
Optional
Color:
Optional
Roof Panel:
Steel Color Sheet, Sandwich Panel
Material:
Q235,Q355
Surface Treatment:
Galvanized,Anti-corrosion Paint
Heat Insulation System:
Optional
Wall Panel:
Steel Color Sheet, Sandwich Panel
Connect:
Bolt/Weld
Country Of Origin:
China
Window:
Aluminum Alloy/PVC
Door:
Sliding Door/lift Door
Design Standard:
AISC/EN/JIS/GB
Lighting System:
Optional
Fire Protection System:
Optional
Color:
Optional
Roof Panel:
Steel Color Sheet, Sandwich Panel
Material:
Q235,Q355
Surface Treatment:
Galvanized,Anti-corrosion Paint
Heat Insulation System:
Optional
Wall Panel:
Steel Color Sheet, Sandwich Panel
Connect:
Bolt/Weld
Country Of Origin:
China
Window:
Aluminum Alloy/PVC
Door:
Sliding Door/lift Door
China Factory Turnkey Customize Light Gauge Steel Warehouse For Sale

Product Description

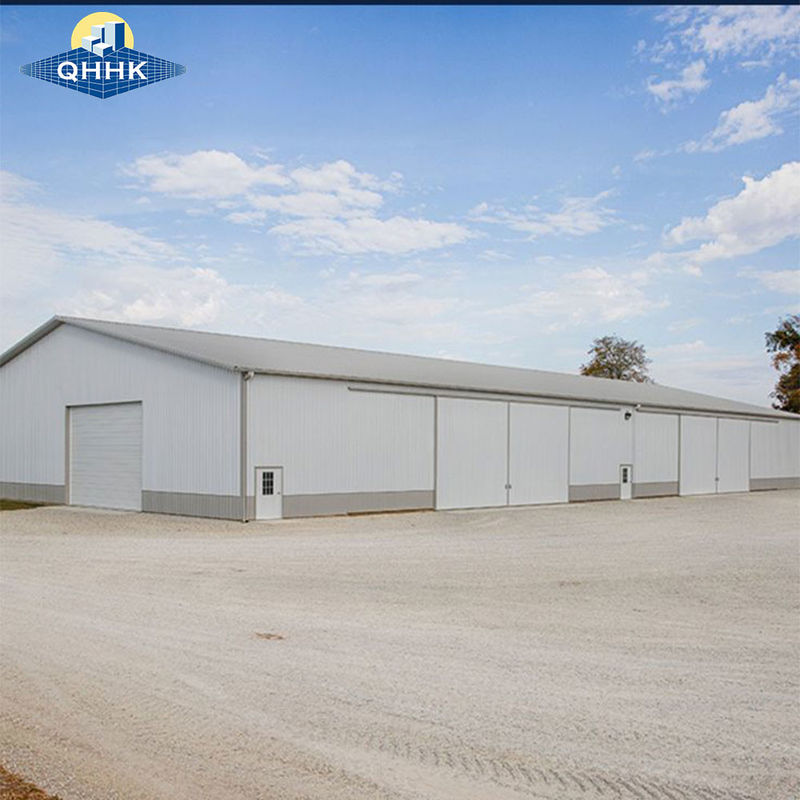

The prefabricated steel warehouse is very durable. They are strong enough to withstand heavy snow, high winds, and strong earthquakes. Wall panels and roof panels can also be coated with aluminum compounds to prevent rust and extend the panels’ lives. These pre-designed steel structures are also not flammable, so they are unlikely to be destroyed by fire. This makes it very suitable for storing hazardous chemicals. In addition to durability, another benefit is the speed of construction.

Prefabricated steel warehouse building can meet a wide range of project needs-from commercial (car shed, exhibition hall) to agriculture (metal warehouse, warehouse shed) to industry (workshop, equipment warehouse).



Prefabricated Steel Warehouse VS Concrete Warehouse Building:
Construction period

In terms of the construction period, the steel structure has obvious advantages. The prefabricated steel structure warehouse construction is speedy because its construction is produced in the factory on the construction site. Only hoisting and splicing can meet some manufacturers’ needs for emergency construction and warehouse construction.



Environmental protection
After the steel components are processed and transported to the construction site, the components only need to be hoisted and welded. There is no water operation, no sand, and a large amount of dust generated during the whole process, which can reduce environmental pollution and impact nearby residents. However, the traditional concrete Buildings can’t do this, which means that steel structures have done a good job in environmental protection, the most important aspect of humanity. Besides, the recyclability of steel also conforms to the concept of sustainable development. In contrast to concrete buildings, after demolishing, there is a pile of construction waste.



Price
Steel structure saves construction costs and labor costs more than concrete. The cost of building a steel structure warehouse is 20 to 30% lower than that of traditional concrete buildings, and steel structure is stronger and more durable than concrete and has the superior seismic performance.



Structural weight
The steel structure building itself has the characteristics of lightweight. The prefabricated steel structure warehouse walls and roof are made of light metal building materials, which are much lighter than the brick and concrete wall ceramic tile roof, which can reduce the warehouse’s overall weight and does not damage the stability of the structure.

China Factory Turnkey Customize Light Gauge Steel Warehouse For Sale 0 China Factory Turnkey Customize Light Gauge Steel Warehouse For Sale 1 China Factory Turnkey Customize Light Gauge Steel Warehouse For Sale 2
China Factory Turnkey Customize Light Gauge Steel Warehouse For Sale 3 China Factory Turnkey Customize Light Gauge Steel Warehouse For Sale 4 China Factory Turnkey Customize Light Gauge Steel Warehouse For Sale 5

Structure Specification

Items Specification
Main Steel Frame Column Q345, Q355 Welded H Section Steel
Beam Q345, Q355 Welded H Section Steel
Secondary Frame Purlin Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical&Horizontal support Q235 Angle Steel, Round Bar or Steel Pipe
Cladding System Roof panel EPS Sandwich Panel / Glass Fiber Sandwich Panel /
Rock Cotton Sandwich Panel / Pu Sandwich Panel /Steel Sheet
Wall panel same with the roof panel
Accessories Window Aluminum Alloy Window / PVC Window
Door Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door
Rainspout PVC
Live load on Roof In 50kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade according to local climate
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Finishing Options Vast array of colors and type available
Paint Options Alkyd painting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized

Who Are We

QHHK is a 23-year supplier of steel structure warehouses, steel workshop buildings, steel hangars, prefab steel gymnasiums, metal garage buildings, steel structure poultry houses, and other large steel buildings.
QHHK provides one-stop steel structure services: design, fabrication, and installation guidance.
QHHK has 2 modern factories in China. There are 4 production lines with complete production equipment system.
QHHK is a professional manufacturer of steel structure warehouse with 23 years experience, finished 2280 projects total of 1500000sqm.
We have formed a complete set of efficient and professional customer service, production and processing, installation, and after-sales processes system. We always insist on saving cost and time for our customers. Let customers be 100% satisfied, and 100% assured.We look forward to your visit and experience our high-quality services and products.

China Factory Turnkey Customize Light Gauge Steel Warehouse For Sale 6

Why Choose QHHK

We have been committed to the design of heavy steel buildings, the control of building quality details, the production

of steel components, and the installation of steel buildings for 23 years

China Factory Turnkey Customize Light Gauge Steel Warehouse For Sale 7



Our Certifications

China Factory Turnkey Customize Light Gauge Steel Warehouse For Sale 8

Success Cases

China Factory Turnkey Customize Light Gauge Steel Warehouse For Sale 9

Our Customers

China Factory Turnkey Customize Light Gauge Steel Warehouse For Sale 10

Packing & Delivery

Packaging Details
steel structure warehouses
1) Steel structure components will be in nude packaging with proper protection.
2) Sandwich panels will be packed with plastic film.
3) Doors and windows will be packed with bubble plastic.
4) Bolts and other accessories will be packed in wood boxes.
Normally is 40’HQ and 40’OT container.
If you have specifical requirements,40GP and 20GP container are ok.
Port
Dalian Port/ QINGDAO PORT/LIANYUNGANG PORT/SHANGHAI PORT

China Factory Turnkey Customize Light Gauge Steel Warehouse For Sale 11

How To Get A Quote

Please kindly inform us of the information below if you are interested in our products.

1. Project Progress: Is Land Purchased? Is it licensed by the government?

2. Usage: for warehouse, workshop, showroom, etc.

3. Location: In which country will it be built?

4. Local Climate: Wind speed, Snow load (max. Wind speed)

5. Design: Please provide the design drawing. Or do you need us to design for you?

6. Dimension: Length*width*height

7. Crane Beam: Do you need a crane beam inside the steel structure?

8. Roof and Wall: determine the panel material, such as color steel panel, and metal sandwich panel.

9. Windows and Doors: what material, quantity, and type?

You Want To Know

1. Are you a manufacturing factory or trading company?
We are manufacture factory, located in Shenyang city, near to Dalian port. We have 2 workshops from steel structure to wall

and roof sheet.

2. Can you provide free design?
Yes, we have 10 senior engineers with rich experience. You only need to give me your idea, we will design it for you for free.



3. Can you offer competitive prices?
If you have no special requirement for the material, we all use materials from big material manufacturing companies. We also

can design it according to your requirements. But no matter what kind of quotation mode, offering a reasonable price is our business objective.



4. How to install? Can you provide engineer to help?
We will provide detailed installations, like CAD, 3D Tekla, etc. Or we will provide the engineers to help according to your requirements.
