Product Details
Place of Origin: Shenyang
Brand Name: QHHK
Certification: ISO/WSF
Model Number: steel framed structures
Payment & Shipping Terms
Minimum Order Quantity: 500sqm
Price: usd $49-79square meter
Packaging Details: By clients requirement in 40'OT/ 40'HQ/ 40'GP/ 20'GP Containers.
Delivery Time: Shipped in 30 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Square Meters per Month
Design Standard: |
AISC/EN/JIS/GB |
Lighting System: |
Optional |
Fire Protection System: |
Optional |
Color: |
Optional |
Roof And Wall Panel: |
Steel Color Sheet, Sandwich Panel |
Material: |
Q235,Q355 |
Surface Treatment: |
Galvanized，Anti-corrosion Paint |
Heat Insulation System: |
Optional |
Certification: |
ISO9001:2015,ISO14001:2015,ISO45001:2018 |
Name: |

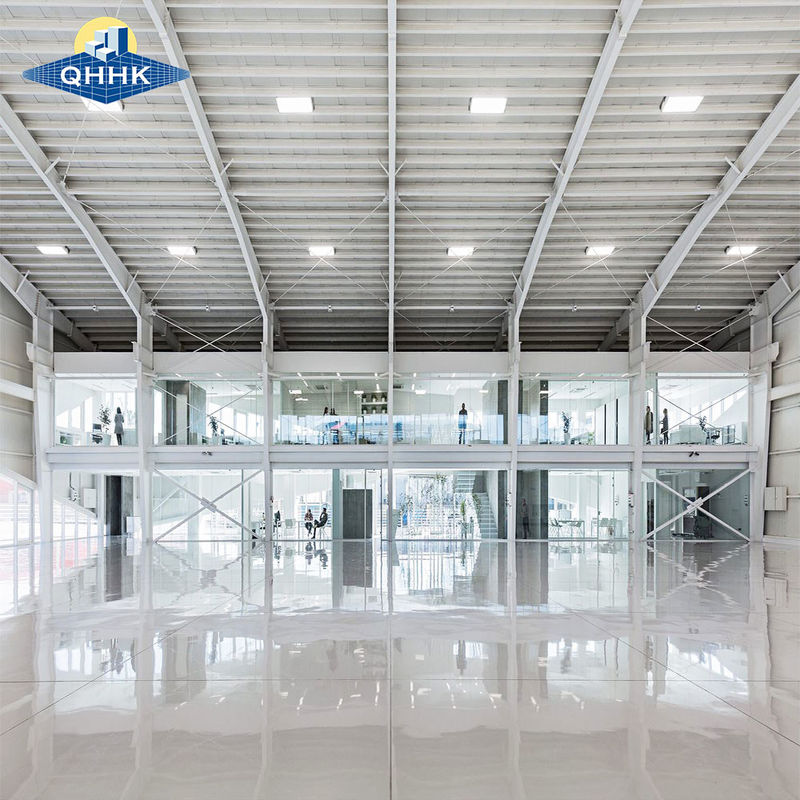

Workshop Steel Structure Metal Structure Buildings |
Design Standard: |
AISC/EN/JIS/GB |
Lighting System: |
Optional |
Fire Protection System: |
Optional |
Color: |
Optional |
Roof And Wall Panel: |
Steel Color Sheet, Sandwich Panel |
Material: |
Q235,Q355 |
Surface Treatment: |
Galvanized，Anti-corrosion Paint |
Heat Insulation System: |
Optional |
Certification: |
ISO9001:2015,ISO14001:2015,ISO45001:2018 |
Name: |
Workshop Steel Structure Metal Structure Buildings |
|
Advantage: 1. The higher utilization rate of the area 2. The energy-saving effect is good 3. Has excellent seismic and wind resistance performance 4. The total weight of the building is light 5. The construction speed is fast 6. Good environmental protection 7. Flexible and rich, Large open room design 8. Meet the requirements of residential industrialization and sustainable development |
|
|
|
|
|
|
| Items | Specification | |
| Main Steel Frame | Column | Q345, Q355 Welded H Section Steel |
| Beam | Q345, Q355 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical&Horizontal support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Cladding System | Roof panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / |
| Rock Cotton Sandwich Panel / Pu Sandwich Panel /Steel Sheet | ||
| Wall panel | same with the roof panel | |
| Accessories | Window | Aluminum Alloy Window / PVC Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rainspout | PVC | |
| Live load on Roof | In 50kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | according to local climate | |
| Earthquake-resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Finishing Options | Vast array of colors and type available | |
| Paint Options | Alkyd painting, two primary painting, two finish painting | |
| (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized | ||
| QHHK is a 23-year supplier of steel structure warehouses, steel workshop buildings, steel hangars, prefab steel gymnasiums, metal garage buildings, steel structure poultry houses, and other large steel buildings. QHHK provides one-stop steel structure services: design, fabrication, and installation guidance. QHHK has 2 modern factories in China. There are 4 production lines with a complete production equipment system. QHHK is a professional manufacturer of steel structure warehouse with 23 years experience, finished 2280 projects total of 1500000sqm. We have formed a complete set of efficient and professional customer service, production and processing, installation, and after-sales processes systems. We always insist on saving cost and time for our customers. Let customers be 100% satisfied, and 100% assured.We look forward to your visit and experience our high-quality services and products. |
We have been committed to the design of heavy steel buildings, the control of building quality details, the production
of steel components, and the installation of steel buildings for 23 years
Design Team
Mainly responsible for all kinds of industrial and civil building design, curtain wall design, and provide engineering consulting, technical guidance, the urban planning, the landscape design, indoor and outdoor decoration design, all kinds of engineering cost and other relevant construction engineering supporting design services. The company insists on the design of uniqueness, uniqueness and practical combine to make each one works become stand the test of time of classics. The company possesses strong design strength and professional design team, has several persons with senior design background of experts. The company partners, technical adviser, technical guidance are domestic famous structure expert, professor, national design master.
| Normally the goods will be shipped using 40’ open-top container and 40’ HQ container. If use 40’HQ, it need to do a steel pallet to pack the goods, then the whole pallet cargo will be pushed into container together, when you unload the goods, you will pull the whole pallet out of the container. In this case, the ocean freight will be cheaper but will increase the cost of pallet. Regarding the open-top containers, all the goods will be loaded one by one. In this case, the sea freight of 40’OT is higher than 40’HQ, but The steel pallet for 40’HQ needs to be charged. You can tell me your preference. |
Please kindly inform us of the information below if you are interested in our products.
1. Usage: For warehouse,workshop, showroom and etc.
2. Location: Which country or area?
3. Size: Length*width*height (mm)
4. Wind load: max Wind speed (kn/m2, km/h, m/s)
5. Snow load: max Snow height (kn/m2, mm)
6. Anti-earthquake level?
7. Brick wall needed or not?
If yes, 1.2m high or 1.5m high
8. Thermal insulation needed or not?
If yes, EPS, fiberglass wool, rock wool, PU sandwich panels will be suggested.
If not, the metal steel sheets will be more affordable.
9. Quantity (unit) and size (width*height) of doors and windows
10. Crane needed or not?
If yes, quantity (units), max Lifting weight (tons), max Lifting height (m).
1. Are you a manufacturing factory or trading company?
We are manufacture factory, located in Shenyang city, near to Dalian port. We have 2 workshops from steel structure to wall
and roof sheet.
2. Can you provide free design?
Yes, we have 10 senior engineers with rich experience. You only need to give me your idea, we will design it for you for free.
3. Can you offer competitive prices?
If you have no special requirement for the material, we all use materials from big material manufacturing companies. We also
can design it according to your requirements. But no matter what kind of quotation mode, offering a reasonable price is our business objective.
4. How to install? Can you provide engineer to help?
We will provide detailed installations, like CAD, 3D Tekla, etc. Or we will provide the engineers to help according to your requirements.
Engaged in welding of steel structure work welders must pass the examination and obtain a certificate. The holder welder must weld in passing the examination and approval within the scope of the project.
2. Fastener connection requirements
Steel structure fabrication and installation of units should be in accordance with the provisions of the high-strength bolts respectively connected with the friction surface of the anti-slip coefficient test and retest, The component friction surface site should be dealt with separately anti-slip coefficient test, and the results should be consistent with design requirements.
3. Steel structure assembly and installation of steel structure requirements
(1) of H-type steel welding seam splicing spacing and the web of the seam shall not be less than 200 mm.
(2) and crane beam crane truss installation in place should not be deflection.
(3) multi-section column installation, each column positioning ground control axis should lead directly, not from the axis of the lower column guide, to avoid too large error accumulation.
(4) the steel grid structure after the completion of the total spell and roofing project should be finished to measure the deflection, the deflection and the measured value of 1.15 times can't exceed the design value.
(5) coating, coating times, and coating thickness shall comply with the design requirements.
(6) the thickness of coating coated thin type fireproof coating shall conform to the requirements of the design about the fireproof limit.
4. Electric single girder crane technical parameters
LD - type A electric single girder bridge crane and CD1, MD1 type electric hoist necessary use, become a light rail running a small crane.
This product is a general-purpose crane, for mechanical manufacturing, assembly workshops warehouses, and other places.
As with the Motor Grab spreader, it handles and transportation of bulk goods. This product is suitable for lifting weights 1, 2, 3, 5, and 10 tons, 22.5 meters span 7.5-.
The crane control mode with the ground (divided into wired and wireless two), control room control, for users to select.
This product is not flammable, explosive in medium or large humidity with acid, alkali gases places of work, is not suitable for lifting and transporting molten metal, toxic and flammable work.
This product series is a series of products of electric single girder cranes that adopt the international advanced standard manufacturing. The machine has the advantages of a novel structure, good technology, operation flexibility stable, safety, and reliable.
