Product Details
Place of Origin: Shenyang
Brand Name: QHHK
Certification: ISO/WSF
Model Number: steel framed structures
Payment & Shipping Terms
Minimum Order Quantity: 500sqm
Price: usd $49-79square meter
Packaging Details: By clients requirement in 40'OT/ 40'HQ/ 40'GP/ 20'GP Containers.
Delivery Time: Shipped in 30 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 Square Meters per Month
Design Standard: |
AISC/EN/JIS/GB |
Lighting System: |
Optional |
Fire Protection System: |
Optional |
Color: |
Optional |
Roof And Wall Panel: |
Steel Color Sheet, Sandwich Panel |
Material: |
Q235,Q355 |
Surface Treatment: |
Galvanized，Anti-corrosion Paint |
Heat Insulation System: |
Optional |
Certification: |
ISO9001:2015,ISO14001:2015,ISO45001:2018 |
Design Standard: |
AISC/EN/JIS/GB |
Lighting System: |
Optional |
Fire Protection System: |
Optional |
Color: |
Optional |
Roof And Wall Panel: |
Steel Color Sheet, Sandwich Panel |
Material: |
Q235,Q355 |
Surface Treatment: |
Galvanized，Anti-corrosion Paint |
Heat Insulation System: |
Optional |
Certification: |
ISO9001:2015,ISO14001:2015,ISO45001:2018 |
|

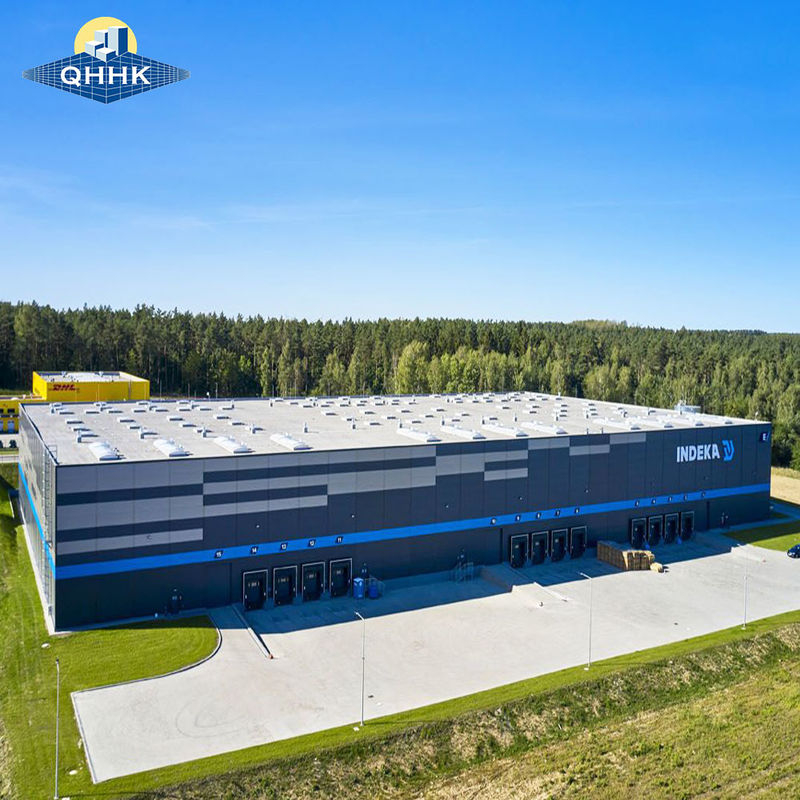

Steel structure warehouse building is one of the prefabricated steel structure building types. The steel structure warehouse can be custom-designed according to customer needs to meet any industrial or commercial storage needs. Specifically, it can be divided into light and heavy steel structure warehouses. The large steel structure warehouse supports the operation of cranes. A mezzanine can also be set up on the second floor as an office.
In the context of the global energy crisis, the steel structure warehouse building structure is regarded as the “best form of green building“. Due to the light weight of the steel structure and easy construction, it is currently widely used in the construction of large warehouses, factories, camps, apartments, hospitals, schools, multi-store buildings, and other fields.
Low Carbon Alloy Steel Q355b Steel Plate ---- To ensure the utmost stability and strength for our products, we use high-quality Q355B steel plates of varying thicknesses which results in an increased lifespan.
Durable Powder Coating With Owen Baking ---- In addition to the above, all products are subject to polyester electrostatic powder coating to ensure that they are odorless and rust-free.
Customizable Design ----- Due to our direct involvement at the core production facility, our clients have the option to “modify” any of the products with respect to their design or color, to suit their specific requirements.
Warranty ----- All our metal cabinets come with a 1-YEAR WARRANTY for manufacturing defects. |
|
|
|
|
|
|
| Items | Specification | |
| Main Steel Frame | Column | Q345, Q355 Welded H Section Steel |
| Beam | Q345, Q355 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical&Horizontal support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Cladding System | Roof panel | EPS Sandwich Panel / Glass Fiber Sandwich Panel / |
| Rock Cotton Sandwich Panel / Pu Sandwich Panel /Steel Sheet | ||
| Wall panel | same with the roof panel | |
| Accessories | Window | Aluminum Alloy Window / PVC Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rainspout | PVC | |
| Live load on Roof | In 50kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | according to local climate | |
| Earthquake-resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Finishing Options | Vast array of colors and type available | |
| Paint Options | Alkyd painting, two primary painting, two finish painting | |
| (gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized | ||
| QHHK is a 23-year supplier of steel structure warehouses, steel workshop buildings, steel hangars, prefab steel gymnasiums, metal garage buildings, steel structure poultry houses, and other large steel buildings. QHHK provides one-stop steel structure services: design, fabrication, and installation guidance. QHHK has 2 modern factories in China. There are 4 production lines with complete production equipment system. QHHK is a professional manufacturer of steel structure warehouse with 23 years experience, finished 2280 projects total of 1500000sqm. We have formed a complete set of efficient and professional customer service, production and processing, installation, and after-sales processes system. We always insist on saving cost and time for our customers. Let customers be 100% satisfied, and 100% assured.We look forward to your visit and experience our high-quality services and products. |
We have been committed to the design of heavy steel buildings, the control of building quality details, the production
of steel components, and the installation of steel buildings for 23 years
| Normally the goods will be shipped using 40’ open-top container and 40’ HQ container. If use 40’HQ, it need to do a steel pallet to pack the goods, then the whole pallet cargo will be pushed into container together, when you unload the goods, you will pull the whole pallet out of the container. In this case, the ocean freight will be cheaper but will increase the cost of pallet. Regarding the open-top containers, all the goods will be loaded one by one. In this case, the sea freight of 40’OT is higher than 40’HQ, but The steel pallet for 40’HQ needs to be charged. You can tell me your preference. |
Please kindly inform us of the information below if you are interested in our products.
1. Project Progress: Is Land Purchased? Is it licensed by the government?
2. Usage: for warehouse, workshop, showroom, etc.
3. Location: In which country will it be built?
4. Local Climate: Wind speed, Snow load (max. Wind speed)
5. Design: Please provide the design drawing. Or do you need us to design for you?
6. Dimension: Length*width*height
7. Crane Beam: Do you need a crane beam inside the steel structure?
8. Roof and Wall: determine the panel material, such as color steel panel, and metal sandwich panel.
9. Windows and Doors: what material, quantity, and type?
1. Are you a manufacturing factory or trading company?
We are manufacture factory, located in Shenyang city, near to Dalian port. We have 2 workshops from steel structure to wall
and roof sheet.
2. Can you provide free design?
Yes, we have 10 senior engineers with rich experience. You only need to give me your idea, we will design it for you for free.
3. Can you offer competitive prices?
If you have no special requirement for the material, we all use materials from big material manufacturing companies. We also
can design it according to your requirements. But no matter what kind of quotation mode, offering a reasonable price is our business objective.
4. How to install? Can you provide engineer to help?
We will provide detailed installations, like CAD, 3D Tekla, etc. Or we will provide the engineers to help according to your requirements.
